Event-Driven Architecture with Dataverse and Azure Event Grid

Event-driven architecture (EDA) as described in Wikipedia is a software architecture paradigm promoting the production, detection, consumption of, and reaction to events.


An event can be defined as "a significant change in state", In Dataverse's terms, this could be anything from creation, update, deletion, etc. What EDA allows us is to decouple the source and target systems from point-to-point integrations and processing, hence the source system (Event Publishers) just generates a message or event which is picked up by middleware and notifies the subscriber(s) (Event handlers) of this event. Event Publishers is not concerned with who these event handlers are and how the Event handlers will process this event.


This pattern is useful in scenarios such as

  1. Events will be handled by multiple systems

  2. Source and Target systems lack direct integration options

  3. Different teams manage the development and maintenance of the source and target systems

  4. A scalable integration design is required for future use

and many more,


In this blog, we will cover how we can use Dataverse and Azure Event Grid to implement an event-driven architecture, where Dataverse will be used as both Event Publisher and Event Handler,


Azure Event Grid is Microsoft Azure's event routing and messaging service, It has native integration with lots of Azure Services and can connect these services as Event Publisher or Event Handler, A custom event publisher can be created in case the event publisher is not an Azure service



Dataverse as Event Handler

In this scenario, we will create a record in a table in Dataverse when a file is uploaded in an Azure storage container.

As Azure Storage is when of pre-built Event publisher (source) for Event Grid, an upload event is an out-of-the-box event for which we do not need to create a topic, so effectively we are going to directly configure the subscribers here. Therefore we will first create our Event Handler and then point to it through the Event Subscription method.


For demonstration purposes, we have kept it very simple, below is an example Power Automate flow that acts as an event handler, it is listening for an HTTP trigger and creates a row in a Dataverse table


The HTTP trigger's request body schema will be based on Event Grid's event schema,

The data object in the request is unique to each publisher while the rest of the schema remains the same.

[
  {
    "topic": string,
    "subject": string,
    "id": string,
    "eventType": string,
    "eventTime": string,
    "data":{
      object-unique-to-each-publisher
    },
    "dataVersion": string,
    "metadataVersion": string
  }
]

For Azure Blob event publisher, the schema looks something like this, and this is what we have used in our example flow


{
    "type": "array",
    "items": {
        "type": "object",
        "properties": {
            "topic": {
                "type": "string"
            },
            "subject": {
                "type": "string"
            },
            "id": {
                "type": "string"
            },
            "eventType": {
                "type": "string"
            },
            "eventTime": {
                "type": "string"
            },
            "data": {
                "type": "object",
                "properties": {
                    "api": {
                        "type": "string"
                    },
                    "clientRequestId": {
                        "type": "string"
                    },
                    "requestId": {
                        "type": "string"
                    },
                    "eTag": {
                        "type": "string"
                    },
                    "contentType": {
                        "type": "string"
                    },
                    "contentLength": {
                        "type": "integer"
                    },
                    "blobType": {
                        "type": "string"
                    },
                    "url": {
                        "type": "string"
                    },
                    "sequencer": {
                        "type": "string"
                    },
                    "storageDiagnostics": {
                        "type": "object",
                        "properties": {
                            "batchId": {
                                "type": "string"
                            }
                        }
                    }
                }
            },
            "dataVersion": {
                "type": "string"
            },
            "metadataVersion": {
                "type": "string"
            }
        },
        "required": [
            "topic",
            "subject",
            "eventType",
            "id",
            "data",
            "dataVersion",
            "metadataVersion",
            "eventTime"
        ]
    }
}

Once the flow is created, copy the HTTP trigger URL for future use.


Now we will directly go to the storage resource on Azure Portal and navigate to the Events section of that resource



We will create a new Event Subscription and give it a name, and select the event type. for this example, we are subscribing for Blob Created event and the End Point type is WebHook with Power Automate HTTP trigger URL as the End Point.


Everything is good to go now, to test it we can now upload a file in our storage container and the event grid will route the message to the power automate flow.


Dataverse as Event Publisher

In this scenario, Dataverse acts as an event publisher, we will generate an event when a new record is created in a Dataverse table, This event is sent to the event grid as a custom topic and the event grid will route this to an Azure Function which will act as an event handler.


The first step in this scenario is to create an Event Grid topic, you do that in the Azure Portal



Give the topic a name and create it


Once the topic is created, keep a note of Topic Endpoint


Also, copy the ID from the Topic's JSON view




and finally, copy the access key from the Access Keys section.

Now our Custom topic is ready to use, next we will create out Power Automate flow. The flow is simple in this example, it runs when a new account is created, it composes a message to be sent to Event Grid and sends the message


In the Compose action, the topic property is set to the ID we copied from the Topic's JSON View, and the data object is what you want to send as part of your custom message. Please note this message follows the same Event Schema we used while receiving the message.


Finally, to send this to Event Grid, we have the HTTP action, The URL of the action is the Topic's Endpoint and in the header, we add a custom header aeg-sas-key the value of it is what we copied from the access keys


Now our flow is ready, and if a new account is created it will send a message with some account details to the Azure Event Grid. To complete the process we will use the Azure Function to act as the event handler.

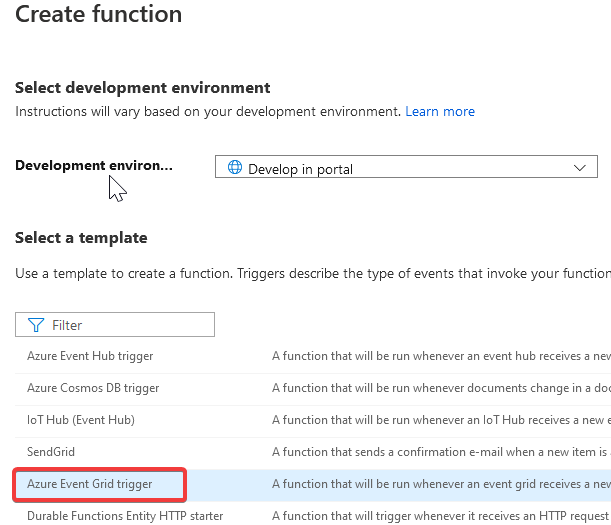

We will create a new Azure Event Grid triggered Azure Function

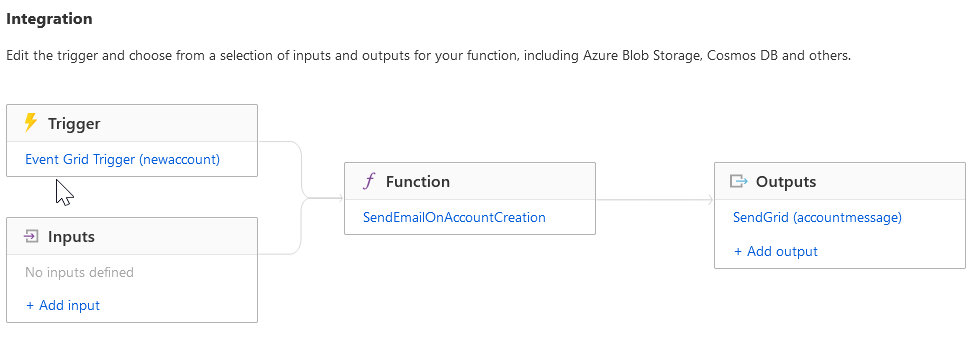

Make sure the trigger is configured to be Event Grid Trigger


Once the Azure function is ready and you have added your logic, we will create an event subscription under our Event Grid Topic, using the Endpoint type as Azure Function and select the Azure Function we just created as the endpoint


We are all good to go now!!!
